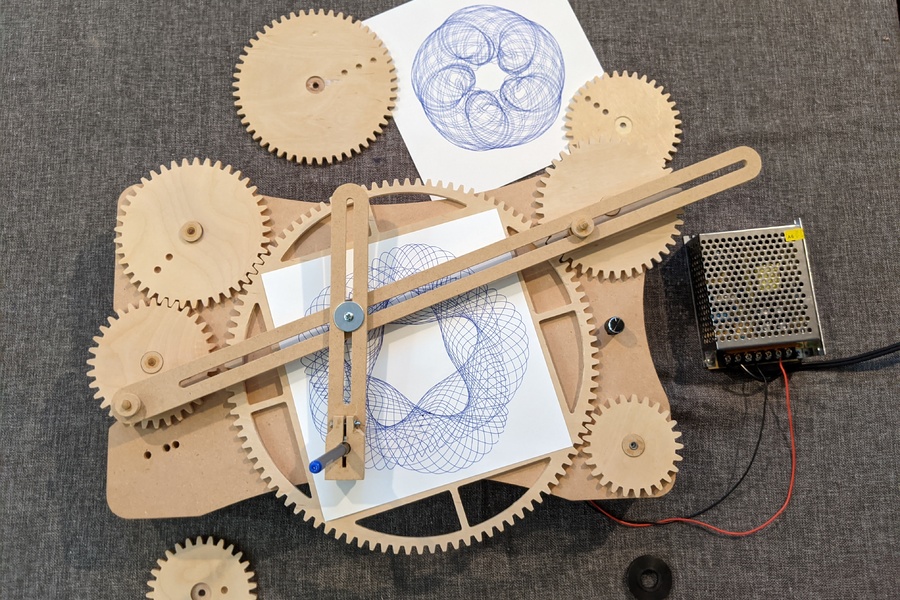

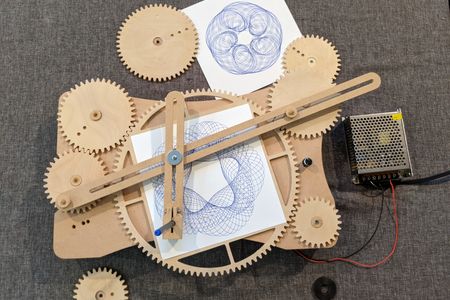

I made an motorized drawing machine to create unique shapes
Type | Length | Width | Thickness | Job Zero |
---|---|---|---|---|
MDF | 357.30 | 576.89mm | 19.00mm | BOTTOM LEFT |
Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
---|---|---|---|---|---|
Toolpath 1 | 2 | 1270mm | 762mm | -15.00mm | |
Toolpath 2 | 2 | 1270mm | 762mm | -20.00mm | |
Toolpath 3 | 2 | 1270mm | 762mm | -15.00mm | |
Toolpath 5 | 2 | 1270mm | 762mm | -4.00mm | |
Toolpath 6 | 2 | 1270mm | 762mm | -20.00mm | |
Toolpath 4 | outside-profile | 2 | 1270mm | 762mm | -20.00mm |
Filename | File Type | File Size | |
---|---|---|---|
design_1 | c2d | 1.24MB | |
design_2 | c2d | 412.81kB | |
design_3 | c2d | 848.40kB | |
design_4 | c2d | 189.58kB |
all made from scrap materials I had from home mostly 1/4" ply and 3/4" mdf
