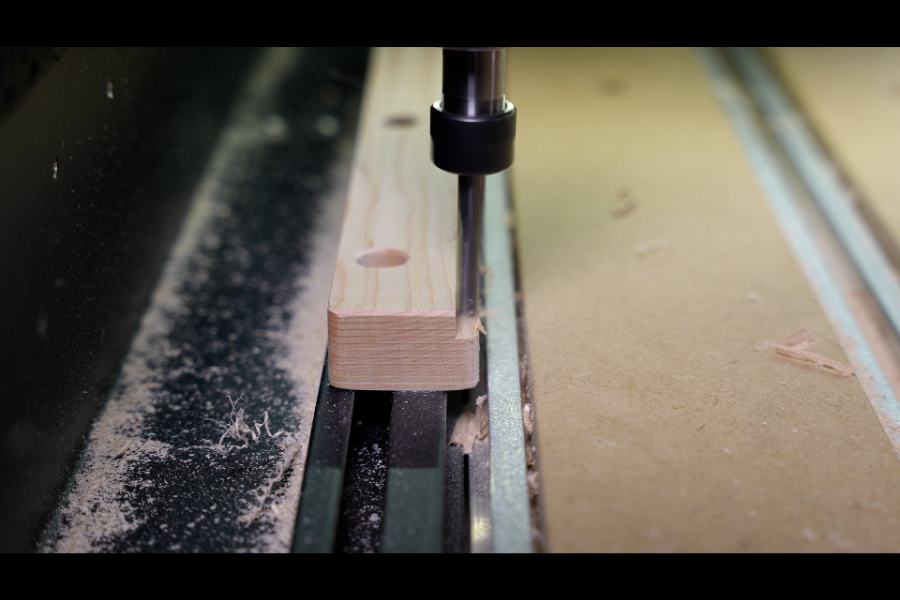

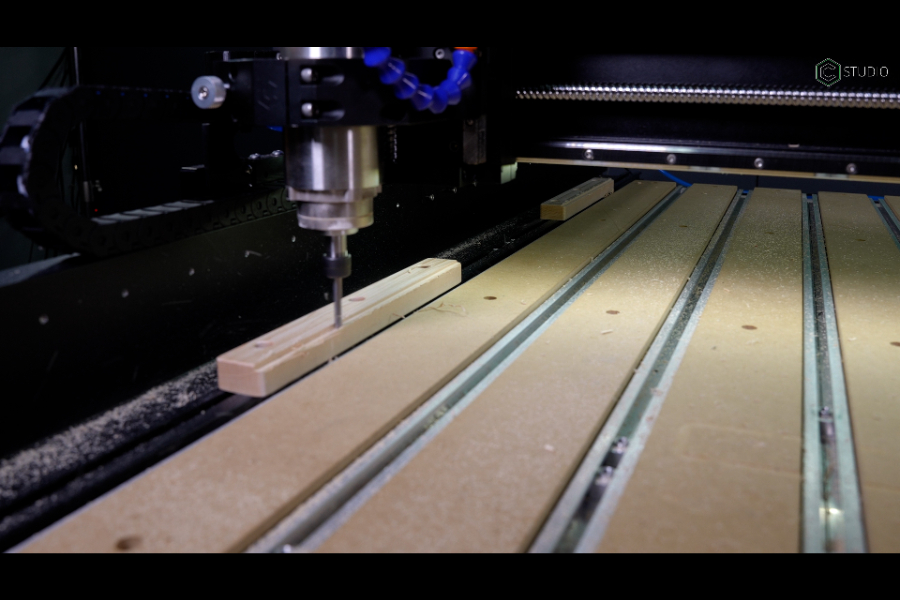

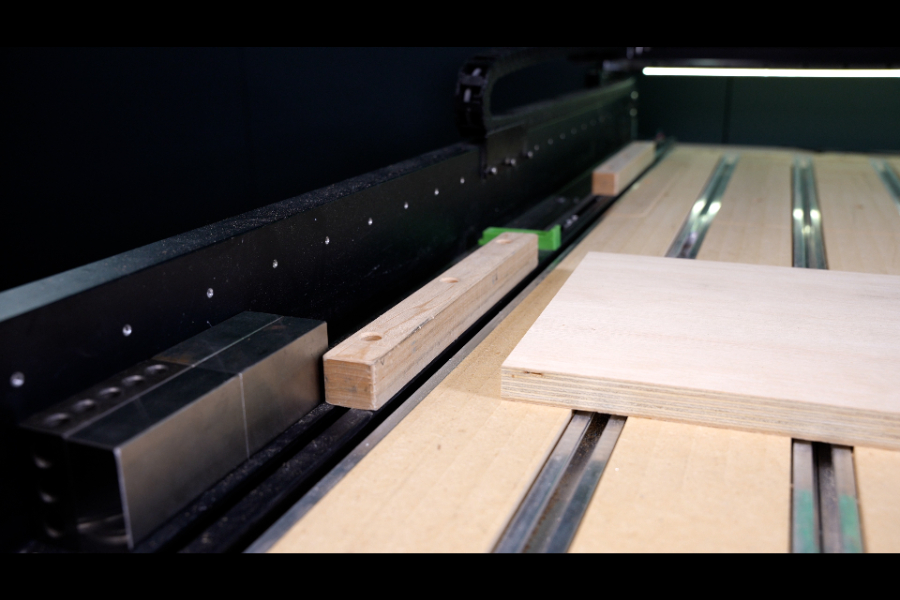

These guides are designed to be cut out, secured to your machine in the left-most t-track with 3 Teez Nuts each, and then cut with the Shapeoko. This will create a zero clearance edge guide for tiling projects. Additionally, the guides can be used to locate stock for various setups.
| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| Zero Clearance Guide Share File | c2d | 244.00kB |

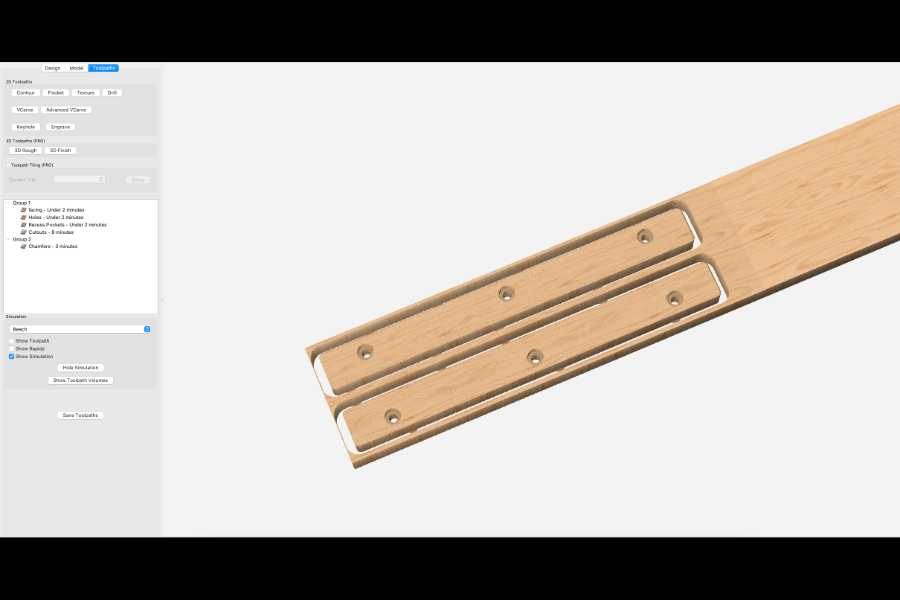

This file was used in 8/4 Hard Maple to create the Edge Guides used at Carbide 3D HQ.
You'll need to adapt the file settings to your particular stock.
These edge guides are designed to be cut after being secured to the T-Track.
Have you made this project?

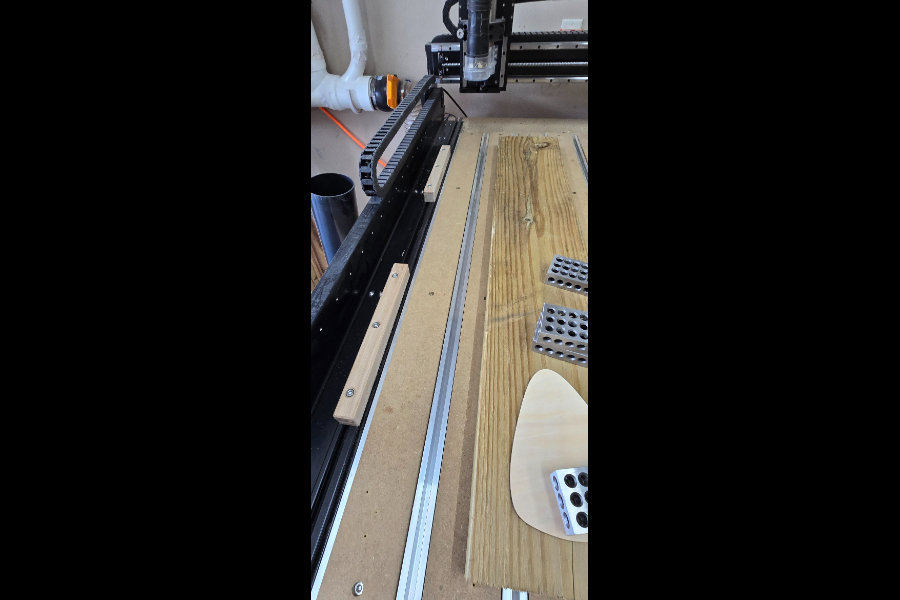

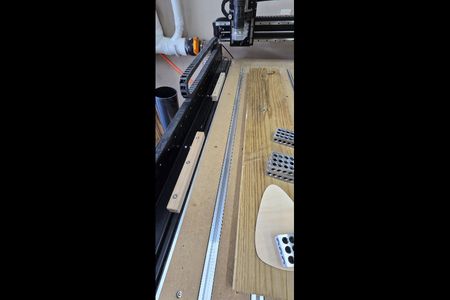

If so, upload a photo to show the author some love and let everyone know what your finished version looks like!
